6 inch AISI304L Wire Wrapped Screen
Description of AISI304L Wire Wrapped Screen
6 inch wire mesh screen/stainless steel wire mesh cylinder filter is manufactured by a "V" or wedge shaped wire around an internal array of longitudinal support rods. Each intersecting point of these wires is fusion welded. The "V" or wedge shaped profile wire wraps around support rods over the full length of the screen creating a continuous slot opening, hence the screen allows water (oil) to enter your well freely in ample quantities, while at the same time keeps the majority of sand and gravel out of the well.
So wire mesh screen is also called Johnson screens,continuous slot screens,wedge wire screens,etc.
Photo show of AISI304L Wire Wrapped Screen:
Specification of AISI304L Wire Wrapped Screen:
| Wedge wire |
Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70
Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
|
| Support rod |
Width(mm): 2.30 3.00 3.30 3.70
Height(mm): 2.70 3.60 4.70 5.60 6.30
Round: From 2.50mm to 6.0mm
|
| Slot size |
0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm is available according to request.
|
| Material |
galvanized low carton (LCG), stainless steel (304,316,316L,etc.) |
| Length |
up to 6 meters. |
| Diameter |
from 30mm to 1500mm.
|
| End connection |
Plain beveled ends, flanged or threaded couplings
|
| Wire size |
0.75×1.5mm, 1×2mm, 2×3mm, 2.5×3mm, 3×5mm
|
Testing of AISI304L Continuous Slot Wire Wrapped Screen:
First, we will inpsect strictly the chemical component and physical performance of raw materialsand and then load them into warehouse.
Second, our inspector will check the whole procedure. Unqualified screens will be abandoned during the production.
Third, before packaged, our sales manager will inspect the goods with inspector again, approved ones will be labled and packaged.
Fourth, we have professional inspectors to inspect the loading into container to avoid damage during the transportation.
Packing&delivery
Packaging Details of Wire Wrapped Screen:
1. With a plastic film winding and then packed in wooden cases, boxes lined with waterproof material;
2. According to your special requests.
Delivery Time: 6 inch wire mesh screen/stainless steel wire mesh cylinder filter is delivered within 30 days after received the advanced deposit/depend on quantity

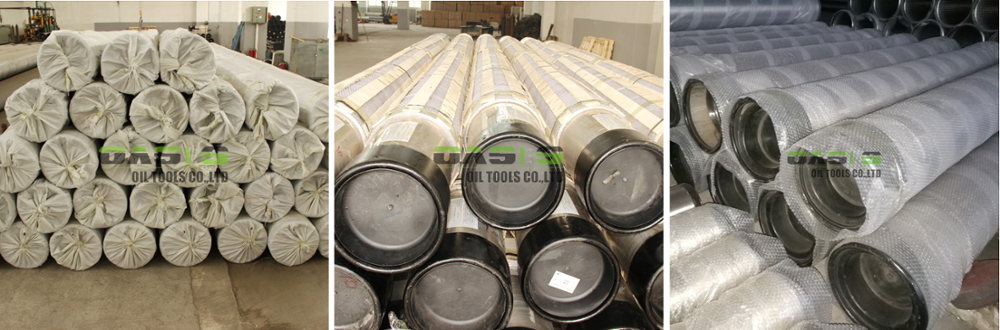

woven bags package bubble bags with wooden strip bubble bags package
wooden case container
About we OASIS:
Oasis is a famous manufacturer which integrates the research and the design, development, manufacture and sell water well screens/Johnson screens/wedge wire screen/rod base screen/the continuous slot screen/non-enforced Johnson screen, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens/perforated base pipe with screen jacket/pipe base screen/reinforced Johnson type screen, perforated pipe (base pipe), the gravel pre-packed well screens, passive water intake screens etc. water, oil and gas well filtering products as well as API/Stainless Steel Casing& Tubing and pipes and industrial parts.
our company attend Beijing Oil exhibition good team
large workshop standardized warehouse
